In regions like Vancouver and throughout British Columbia, challenging soil conditions and high seismic activity demand exceptional engineering precision, especially for deep foundations, retaining walls, and high-rise construction. VSS Shoring specializes in anchor testing and tensioning services to ensure that anchors are correctly installed, meet design requirements, and perform under real-world conditions.
These processes are essential to verifying anchor load capacity, preventing settlement or movement, and protecting the structural integrity of your project.
What Is Anchor Tensioning And Testing?
Anchor tensioning, also known as proof loading, applies a controlled load to pre-stress the anchor after installation. This ensures the anchor provides the intended support from day one.
Anchor testing evaluates how the anchor performs under expected loads, both immediately after installation and over time. This step is especially important when manufacturer data is unavailable or post-event verification is required.
Together, these services confirm the performance of anchors used in:
- Shoring
- Slope stabilization
- Deep foundations
- Infrastructure and tunnel support
Anchor Tensioning
Anchor tensioning creates a pre-stressed condition in the anchor by applying a specific force using hydraulic jacks. This reduces deflection and increases stability in structures such as retaining walls, slope faces, or excavations. The result is greater structural resistance to dynamic and static loads.
Anchor Testing
Anchor testing confirms an anchor’s ability to handle design loads. Testing may be done:
- Before construction, to verify suitability
- After installation, to confirm proper performance
- Post-event, to ensure ongoing structural stability
Key Features and Benefits
Verified Load Capacity: Confirms anchors meet real-world demands
Increased Structural Stability: Reduces movement and distributes loads effectively
Regulatory Compliance: Ensures your project meets engineering codes and safety standards
Cost and Risk Control: Prevents delays, reduces repairs, and improves long-term performance
Budget Accuracy: Helps determine the correct number and configuration of anchors
Verified Load-Bearing Capacity
Anchor testing simulates real-world load conditions to confirm that each anchor can support the design loads over the life of the structure. This process verifies both the design assumptions and the as-installed performance.
Enhanced Structural Stability
Proper tensioning significantly reduces structural movement in retaining walls, slopes, and excavations. The applied prestress improves the anchor’s grip and consolidates surrounding soil or rock, resulting in greater overall stability under both static and dynamic loads.
Compliance with Engineering Standards
Anchor testing ensures your project complies with local building codes, geotechnical specifications, and safety regulations. This is especially critical in seismic zones like British Columbia.
Cost-Effective and Efficient
When manufacturer data is limited or unavailable, on-site anchor testing determines load capacity and suitability—helping avoid costly redesigns, failures, or project delays.
- Tensioning also helps optimize anchor use by confirming the required number and placement.
- Post-installation tests verify performance after significant events (e.g., excavation progress or seismic activity), helping you prevent long-term failures and expensive repairs.
Applications of Anchor Testing and Tensioning
Anchor testing and tensioning are used in a wide range of geotechnical and structural scenarios:

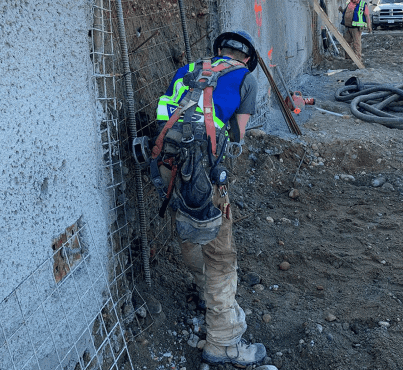

Retaining Walls and Excavation Support
Anchors and soil nails are tensioned to resist lateral soil pressure. Testing confirms they can handle applied loads and remain secure over time.
Slope Stabilization
In slide-prone areas, tensioned anchors help stabilize slopes and embankments. Testing ensures they can resist movement and perform as designed.
Foundation Reinforcement
Infrastructure and Tunnel Support
How Anchor Testing Works
The principal components of a test loading system are a stressing device, a reaction system, and equipment for the measurement and recording of loads and pressures, displacement, and time.
Process Overview and Testing Methods
VSS Shoring provides comprehensive anchor testing using precise hydraulic systems and measurement tools:
Proof Testing
Verifies installation quality. A sample of anchors is loaded to a set value. If any fail, the rest are tested.
Performance Testing
Evaluates anchor capacity by applying load increments, either destructively or non-destructively, depending on project requirements.
Creep Testing
Measures long-term deformation from sustained loads, especially for adhesive or mechanical anchors. Often conducted during design phases.
Frequently Asked Questions (FAQs)
What is the difference between anchor tensioning and testing?
Tensioning applies a load to set the anchor in place; testing evaluates the anchor’s strength under load. Both processes work together to ensure safety and performance.
How long does anchor testing take?
Most tests are completed within a few hours, depending on anchor type and quantity.
Why Choose VSS Inc. for Your Anchor Tensioning And Testing Needs?
With over 20 years of experience in anchor installation, testing, and geotechnical shoring, VSS Shoring is one of the most trusted names in the industry. Our specialized crews, precision equipment, and strict QA/QC processes ensure your anchors meet engineering standards and project timelines.
From missing material data to post-event verification, we provide reliable results that support safe, efficient construction.
