IBO Hollow Bar Injection Anchors
Deep foundations are demanding workspaces, especially when soil conditions are challenging – like those in and around Vancouver. Shoring operations need to be precise and result in stable conditions for a construction project to proceed according to schedule. An advanced geotechnical solution is to use IBO Hollow Bar Injection Anchors. Designed for challenging soil conditions, these self-drilling anchors offer reliable ground stabilization and support.
What Are IBO Hollow Bar Injection Anchors?
Also known as IBO self-drilling anchors, IBO (Injection Borehole Open) hollow bar injection anchors are ingeniously designed self-drilling anchors that excel in deep foundation shoring applications, providing structural support as well as soil stabilization.
Key Features And Benefits
There are several advantages to using IBO self-drilling anchors, especially in landscapes that have loose, collapsing, or water-bearing formations, as found in many areas across British Columbia.
Time Savings and Cost Efficiency
As drilling and grouting can be carried out simultaneously, it allows for rapid deployment in construction projects. The elimination of separate drilling, casing, and grouting phases reduces labour and equipment costs, keeping project timelines up to speed.
Adaptability In Diverse And Challenging Conditions
These anchors can be used in a variety of geological conditions, including remote mountainous regions or urban spaces that are tight on space. Quick installation times are necessary, especially in the latter case, while the ability to grout while drilling is invaluable in formations where casings could easily get stuck, such as in water-bearing rock. They provide stability to slopes where shifting soils pose a potential hazard.
Improved Load-Bearing Capacity
Once the grouting and drilling phases are complete, the grouted anchor augments ground stability and load transfer. This boosted foundational strength is vital for large infrastructure projects, including high-rise buildings or bridges, which are typically built near ground with high water tables.
Ideal For Shoring Tight Spots
Urban environments, civil infrastructure projects, or mining tunnels can offer limited access or low overhead clearance. These anchors eliminate the need for extensive excavation, making them useful for shoring tight spots or carrying out reinforcement work in existing structures.
IBO Hollow Bar Injection Anchor Applications
IBO Hollow Bar Injection Anchors are utilized in a wide range of geotechnical and construction applications:
Slope Stabilization
These anchors hold their own in inclined terrains prone to erosion and landslides. When installed, they reinforce the stability of the slope, protecting infrastructure like roadways, railways, and bridges that are often built on or near unstable ground.
Foundation Support
Ideal for micropile foundation works, IBO Hollow Bar Injection Anchors extend the lifespan of aging buildings. Their ability to transfer structural loads to stable ground layers with minimal disruption to surrounding structures is why they are often used in urban areas with limited access or while constructing new foundations on unstable ground.
Excavation and Retaining Wall Support

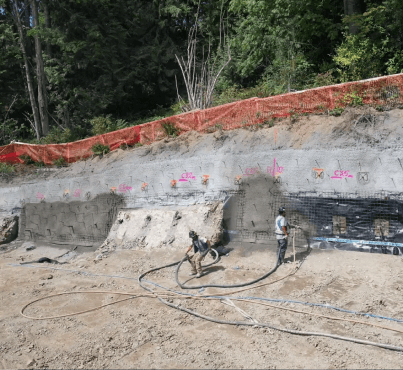

IBO drilling anchors can be used as tiebacks or soil nails to strengthen retaining walls, sheet piles, or soldier piles while also providing roof and wall stabilization in tunneling and mining projects. This reinforcement is essential for maintaining the integrity of deep foundation pits, particularly in areas of Vancouver and British Columbia, where the soil is prone to collapse. Additionally, in certain scenarios, hollow anchor bars serve a dual purpose as dust ejectors before grouting.
Advantages In Specific Scenarios
IBO Hollow Bar Injection Anchors offer specialized solutions for the unique geotechnical challenges found in Vancouver and British Columbia:
Geological Challenges
With diverse geological conditions such as loose sand, soft marine clay, fractured rock, and glacial till, IBO Hollow Bar Injection Anchors provide an efficient solution for unstable ground conditions.
High Groundwater Tables and Seismic Activity
How Do IBO Hollow Bar Injection Anchors Work?
IBO hollow bar self-drilling anchors consist of a hollow steel bar with a drilling rod threaded along its exterior with a drill bit at one end. The hollow of the bar, or the grouting conduit, allows grout to be injected through it during drilling. By injecting grout as the drilling process continues, one ensures that gaps in the surrounding rock or soil are filled, distributing load and ensuring structural integrity. The bar provides structural support once installed post drilling andgrouting. The ability to drill and grout simultaneously streamlines the shoring process, saving time and ensuring structural stability.
Why Choose IBO Hollow Bar Injection Anchors?
IBO Hollow Bar Injection Anchors provide long-term durability, efficiency, and stability, making them an essential component in deep foundation projects.
Durability and Longevity
The grout injection process fills cracks and voids, improving load-bearing capacity and protecting against corrosion. This enhances the longevity of deep foundation projects and ensures a reliable solution for long-term structural support.
Cost-Effectiveness and Efficiency
Frequently Asked Questions (FAQs)
Do IBO Hollow Bar Injection Anchors require casing?
No, the simultaneous drilling and grouting process eliminates the need for casing in collapsing soils. This significantly speeds up the installation process and makes them particularly effective in loose or unstable ground conditions where traditional casing methods may be difficult or inefficient.
Are they suitable for seismic regions?
Yes, these anchors perform well in areas with high seismic activity by spreading the load, ensuring strong foundational stability. The injected grout strengthens the bond with the surrounding soil or rock, providing enhanced resistance to seismic forces and ground movement.
Can they be used in urban environments?
Yes, their adaptability to tight spaces makes them ideal for urban shoring applications. Their ability to be installed with minimal disruption or the need for large excavation is particularly beneficial in densely populated areas where excavation space is limited.
